In the context of CNC (Computer Numerical Control) machining, an "axis" refers to a direction of movement that the machine's tool or workpiece can travel along to shape materials. CNC machines are automated tools that use computer programming to control these movements precisely, and the number of axes determines the machine's complexity and capabilities. Most CNC machines start with at least three axes but can have more for advanced operations.

Key Types of Axes

Linear Axes (X, Y, Z): These handle straight-line movements in a 3D space.

X-axis: Left-to-right movement (parallel to the spindle or cutting tool).

Y-axis: Front-to-back movement (perpendicular to the X-axis).

Z-axis: Up-and-down movement (vertical depth).

A standard 3-axis CNC machine operates solely on these for basic milling, drilling, or cutting along flat surfaces.

Rotational Axes (A, B, C): These add angular or rotational movement, allowing the tool or workpiece to tilt or rotate.

A-axis: Rotation around the X-axis.

B-axis: Rotation around the Y-axis.

C-axis: Rotation around the Z-axis.

Machines with these (like 4-axis or 5-axis) enable more complex geometries, such as curved surfaces or undercuts, without manual repositioning.

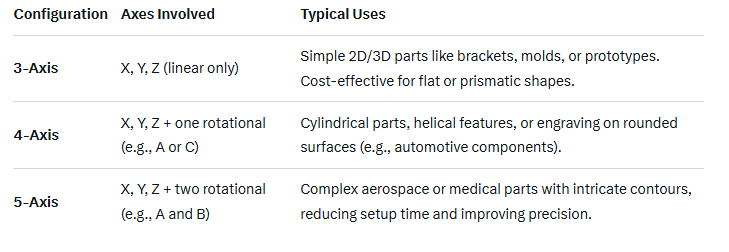

Common CNC Machine Configurations

Higher-axis machines (e.g., 6-axis or more) are used in specialized applications like robotics or multi-tool setups. The choice depends on the part's complexity, material, and production volume—more axes mean greater flexibility but higher cost and programming demands.
