Is it possible to encapsulate magnets using injection molding?

Yes, we can injection mold around magnets. This process is commonly known as Insert Molding or Overmolding, and it is a standard technique used to create durable, waterproof, and high-precision assemblies for automotive sensors, medical devices, and consumer electronics.

There are two primary ways to approach this:

• Insert Molding: A solid, pre-made magnet is placed into the mold cavity, and plastic is injected around it.

• Injection Molded Magnets: A special "magnetic plastic" (a compound of magnetic powder and polymer binder) is injected into the mold to create the magnet and the part at the same time.

Key Challenges & Solutions

Injection molding around magnets is effective but requires careful engineering to avoid damaging the magnet's properties.

• Thermal Demagnetization: Standard magnets (like Neodymium N42) can lose their magnetism if exposed to high temperatures (above 80°C / 176°F). Since molten plastic is much hotter, you must use high-temp grades (like SH, UH, or EH) or, ideally, magnetize the part after molding using a specialized coil.

• Magnet Displacement: The high pressure of the incoming plastic can "push" the magnet out of place. To solve this, molds often use mechanical pins or retaining features (like a step or groove in the magnet) to lock it in position during the shot.

• Thermal Expansion: Magnets are brittle and don't expand much, while plastic shrinks as it cools. If the plastic wall is too thin, it may crack; if it’s too thick, the internal stress might break the magnet.

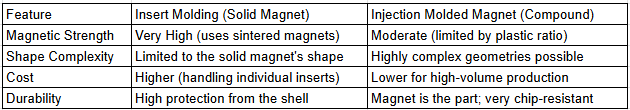

Common Process Comparison

Design Best Practices

• Wall Thickness: Ensure a minimum plastic wall thickness (usually 0.5mm to 1.0mm) to prevent the plastic from cracking during cooling.

• Material Choice: Use resins with lower melting points or better "flow" to reduce the heat-soak time on the magnet.

• Orientation: If the magnet is already "charged," the mold itself must be non-ferrous (like stainless steel or aluminum) to prevent the magnet from jumping toward the mold walls.
