Aluminum die casting is a high-pressure process ideal for producing strong, lightweight, and precise metal parts in high volumes. However, full production tooling (steel dies) is expensive and time-consuming, so prototyping often uses alternative or rapid methods to validate designs before committing to costly dies. True die-cast prototypes (using actual high-pressure injection) are possible with rapid/prototype tooling, but many projects use approximations for cost and speed.

The goal of prototyping is to test fit, function, strength, aesthetics, and manufacturability while mimicking the final die-cast part as closely as possible.

Common Methods for Creating Aluminum Die Casting Prototypes

Here are the most widely used approaches, with pros, cons, and when to choose each:

1.CNC Machining from Solid Aluminum Block ("Hog-Out")

A.Process: Machine the part directly from aluminum bar stock (e.g., 6061 alloy) using CNC mills.

B.Best for: 1–50 parts, quick turnaround (days to weeks), visual/functional testing.

C.Pros: Fast, precise tolerances, no tooling needed.

D.Cons: Doesn't replicate cast microstructure, surface "skin," or mechanical properties (machined parts can be ~15% weaker); waste material; hard for undercuts/curved features.

E.Cost: Lowest for very small quantities.

2.3D Printing / Additive Manufacturing (e.g., DMLS or SLM with AlSi10Mg alloy)Process:

A. Laser-sinter metal powder layer by layer.

Best for: Complex geometries, low quantities (1–20), early design iterations.

B.Pros: No tooling, excellent for intricate details, fast (days).

C.Cons: Higher cost per part, porosity issues, properties close but not identical to die casting.

D.Ideal for conceptual prototypes.

3.Plaster Mold Casting (Rubber Plaster Molding - RPM)

A.Process: Create a master (often from 3D print), make rubber molds, pour plaster slurry, bake, gravity-pour molten aluminum.

B.Best for: 10–1,000 parts, medium complexity.

C.Pros: Low tooling cost (~10% of production die), good surface finish, thin walls possible, lead time 2–4 weeks.

D.Cons: Gravity pour (not high-pressure), slightly different properties/alloys, limitations on some alloys (e.g., no 390 series).

E.Good approximation for geometry and basic strength.

4.Rapid Tooling Die Casting (Prototype/Single-Cavity Die)Process:

A.Machine a simplified steel (e.g., H-13 or P20) or aluminum die (often single cavity), inject molten aluminum under high pressure.

B.Best for: 100–5,000+ parts, when you need exact die-cast properties (microstructure, skin, strength).

C.Pros: Closest to production (same process, material like A380 alloy, properties), suitable for statistical testing.

D.Cons: Higher upfront tooling cost and longer lead time (4–8 weeks, faster with rapid methods).

5.Other Alternatives

A.Sand Casting: Cheap for large parts, flexible design changes.

B.Investment Casting: High accuracy, good for safety-critical testing.

C.Spin Casting: For low-volume complex parts.

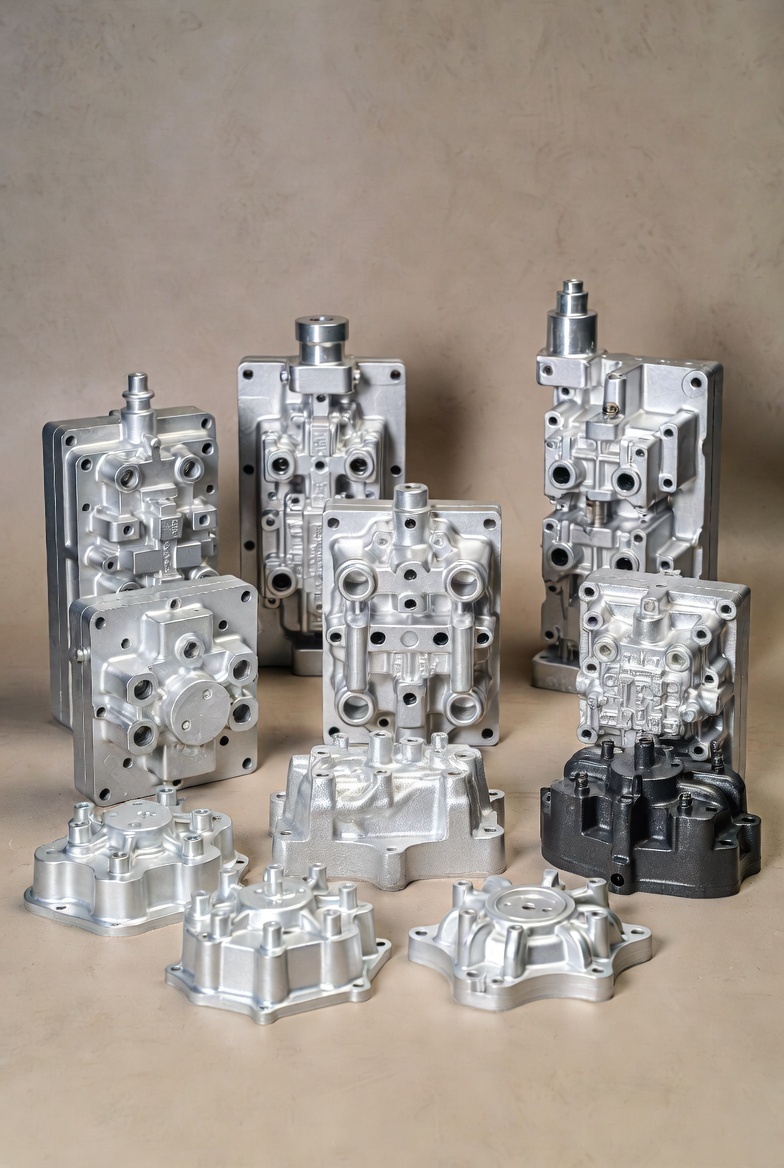

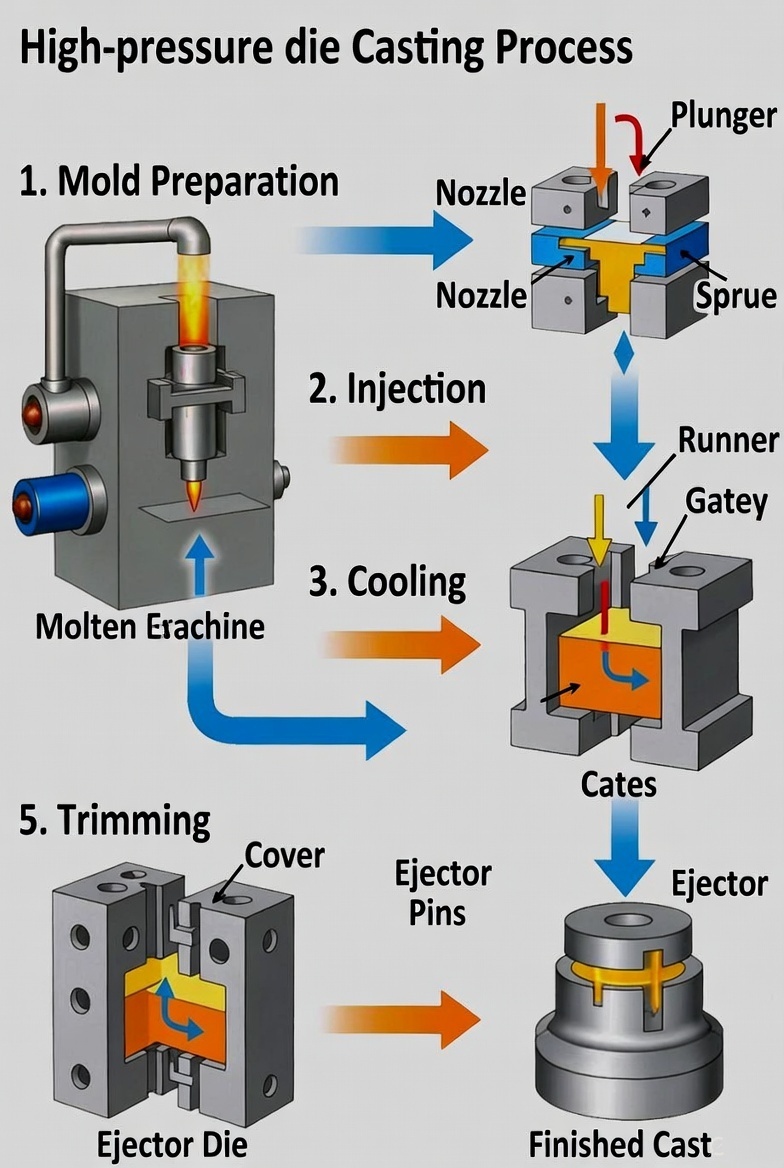

Visual Examples
